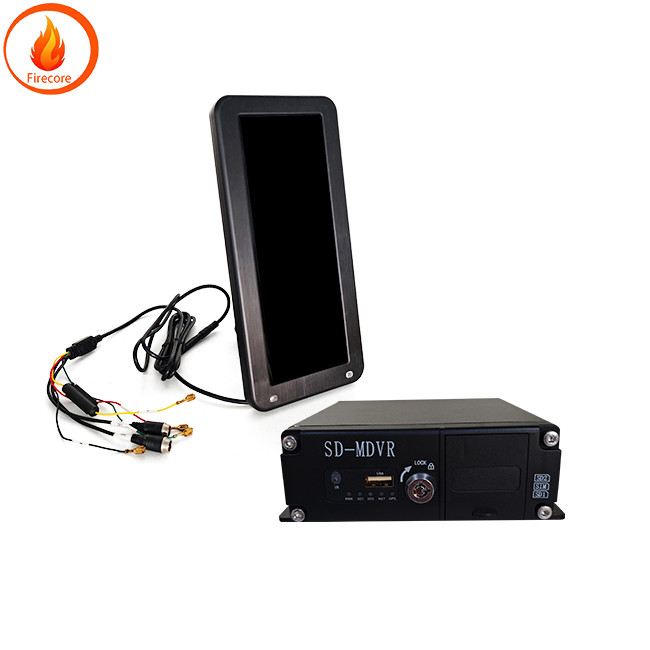

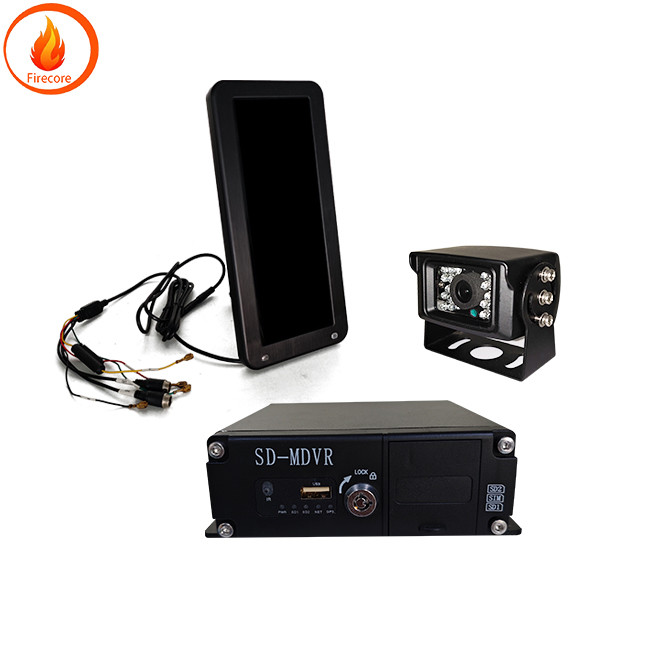

차량 카메라 모니터링 시스템 12.3인치 디스플레이 탑재 모니터링 시스템
제품 매개 변수
표시:
1. 크기: 12. 3 " ((8: 3)
2, 해상도: 1920 * 720P
3, 백라이트: LED 밝기: 850cd / m2
4, 대조: 800: 1
5. 전망 범위: 85도 위로 85도 아래로
전원 공급원: DC9 - 36V
7, OSD 제어: 비디오 재생 비디오 설정 디스플레이 설정 언어 선택 역 설정 시스템 설정
8, 전력 5W
9. 신호 입력: 720P / 960P / 1080P / CVBS 혼합 입력
10 파일 형식: AVI / JPG
메모리: TF 카드 256GB를 지원합니다.
12, 비디오 압축: H.264
기록 해상도: 720P/960P/1080P/CVBS
14 시스템 언어: 중국어 영어
15 디스플레이 화면: 단일 화면 / 듀얼 화면 / 5: 5 / 6: 4 / 7: 3 CHI CH2 1080P를 동시에 표시하는 작업
16, 트리거 제어: 1차 트리거
비디오 형식: PAL/NTSC 자동 전환
HD 카메라:
해상도: AHD 720P / 960P/1080P
수평 폭각: 90 - 150
방수등급: IP68
우리는 연구 개발 생산 및 차량 모니터링 전문 제조업체입니다
자동차 비디오 레코더 자동차 카메라 자동차 USB 카메라 자동차 디스플레이 USB 카메라
이메일로 연락해주세요:firecore1688@163.com
차량에 장착된 원격 모니터링 단말기
The vehicle mounted remote monitoring terminal also known as the vehicle mounted DVR adopts a professional vehicle mounted design that is suitable for automotive power supply and adopts high seismic resistance design It combines mechanical shock absorption electronic shock absorption and software seismic resistance patents and uses a removable ordinary 2.5 - inch hard drive It has multiple modes of security monitoring and recording functions manual timed alarm linkage and fast and convenient query and playback modes The product has a high - speed USB 2.0 interface and broadband network interface which facilitates data backup The vehicle mounted intelligent terminal can be used independently and can also utilize the extended built - in GPS global positioning system and 3G communication module to construct a wireless video monitoring management system for remote scheduling management and real - time monitoring As an extended application in car DVR can also provide functions such as mileage and station name prompts enriching operational applications Mileage and station name prompts in addition to the sound station announcement function the onboard terminal also provides visual mileage and station name prompts displaying the progress of the vehicle on the route through the display inside the vehicle The main functions and architecture of the software platform The onboard monitoring terminal can independently complete the video recording and recording monitoring function on the vehicle, and can also be expanded and configured into a system with wireless network monitoring and management improving and enhancing the regulatory ability of the management department on vehicles and providing more timely monitoring of key areas and routes
The line resembling the head penetrates into the car through the gap of the license plate light and is connected to the power supply and video extension cable of the reversing light This type of installation of reversing camera is a popular one nowadays with a more concealed appearance and easier installation Another method is to drill holes for installation and embed them into the interior of the bumper The advantage of this method is that there is no need to drill holes on the metal parts behind the car Because the bumper is made of plastic the camera wiring is relatively easy The third step is to connect the power cord of the camera to the power cord of the rear reversing light then connect the video cord of the camera to the video extension cable The other end of the video extension cable is connected to the AV input of the car DVD display Finally restore the battery power start the car engage reverse gear and you can see the reverse image on the car display
