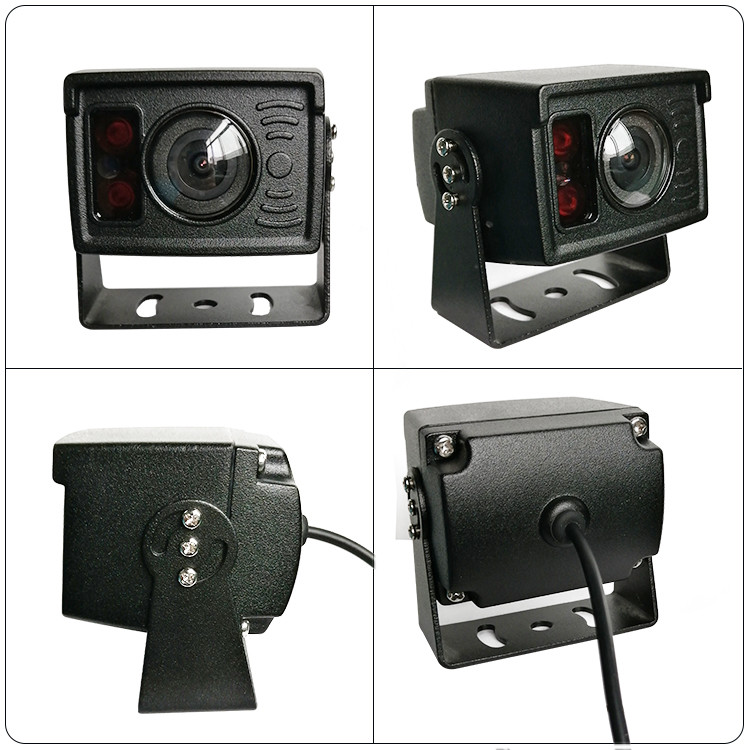

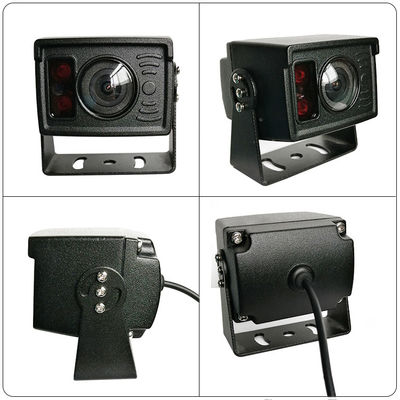

트럭 보안 카메라 스타라이트 야간 시력 AHD 저전력 역수성 모니터링
8MP 카메라를 설치 한 후 앞면 주 카메라의 FOV는 더 이상 필요하지 않을 수 있는 120 °에 도달 할 수 있습니다 감지 거리는 약 60 미터입니다
주변 카메라: mainly installed around the vehicle body usually using 4 - 8 cameras which can be divided into forward facing fisheye camera left facing fisheye camera right facing fisheye camera and rear facing fisheye camera Used for displaying panoramic panoramic view function as well as visual perception and object detection integrating parking function The commonly used color matrix is RGGB as there is a need for color restoration
후면 카메라: 일반적으로 주머니에 설치되어 주로 주차 보조를 위해 시야 각도는 120 ~ 140도이며 감지 거리는 약 50 미터입니다.
앞면 카메라: installed at the B - pillar or vehicle rearview mirror the field of view angle of this camera is generally 90 ° - 100 ° and the detection distance is about 80 meters The main function of this camera is to detect lateral vehicles and bicycles
측면 및 후면 카메라: generally installed at the front fender of the vehicle the field of view angle of this camera is generally around 90 ° and the detection distance is also about 80 meters It is mainly used for scene applications such as vehicle lane changing and merging into other roads
카메라에 탑재: 주로 운전자의 상태를 모니터링하고 피로 상기 및 기타 기능을 달성하는 데 사용됩니다.
Among them the price of front view cameras is relatively high and the current market price is between 300 and 500 yuan The prices of other cameras are around 150 - 200 yuan Some places an ISP image processing chip on the camera side to transmit the processed signal to the host while others do not place an ISP chip and use the built - in ISP chip on the host side for image processing This way the heat dissipation on the camera side will be much better and the radiation will be reduced
