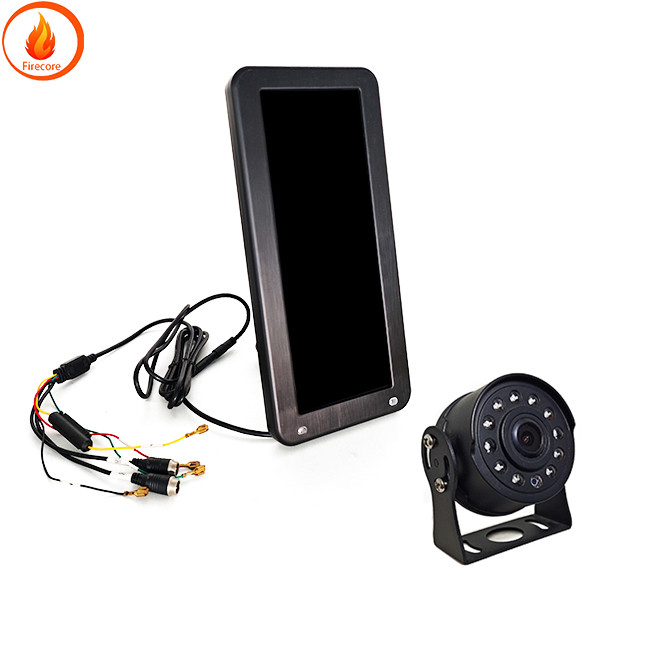

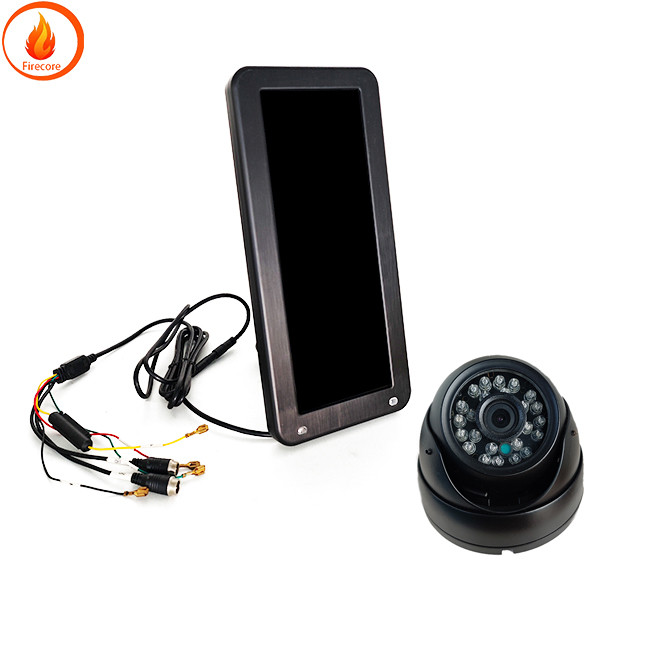

트럭 보안 카메라 시각장애인 측면 시야 전자 후면 거울 12.3 인치 디스플레이 카메라
제품 매개 변수
표시:
1 크기: 12.3 " (8:3)
2, 해상도: 1920 * 720P
백라이트: LED 밝기: 850cd/m2
4, 대조: 800: 1
5. 전망 범위: 85도 위로 85도 아래로
전원 공급원: DC9 - 36V
7, OSD 제어: 비디오 재생 비디오 설정 디스플레이 설정 언어 선택 역 설정 시스템 설정
8, 전력 5W
9. 신호 입력: 720P / 960P / 1080P / CVBS 혼합 입력
10 파일 형식: AVI / JPG
메모리: TF 카드 256GB를 지원합니다.
12, 비디오 압축: H.264
기록 해상도: 720P / 960P / 1080P / CVBS
14 시스템 언어: 중국어 영어
15 디스플레이 화면: 단일 화면 / 듀얼 화면 / 5: 5 / 6: 4 / 7: 3 CHI CH2 1080P를 동시에 표시하는 작업
16, 트리거 제어: 1차 트리거
17, 비디오 형식: PAL / NTSC 자동 전환
HD 카메라:
해상도: AHD 720P/960P/1080P
수평 폭각: 90 - 150
방수등급: IP68
우리는 연구 개발 생산 및 차량 모니터링 전문 제조업체입니다
자동차 비디오 레코더 자동차 카메라 자동차 USB 카메라 자동차 디스플레이 USB 카메라
이메일로 연락해주세요:firecore1688@163.com
1번 The onboard monitoring terminal consists of a camera onboard DVR control equipment and wireless router The camera is responsible for collecting video data and encoding it by the onboard DVR The encoded data is transmitted to the remote command and dispatch center through a modular wireless router
2번 The transmission part mainly uses wireless and wired methods for transmission On sports vehicles our company's 3G network is mainly used for video transmission After DVR collects and compresses video signals the compressed video data is sent to the command and dispatch center through wireless network The wireless router completes the communication between DVR and IP network in the system Wireless routers maximize the throughput of the system making wireless surveillance videos smoother Wireless routers support VPN tunneling fixed IP dialing and bidirectional authentication function fully ensuring the security and stability of the system
3번 The monitoring center installs corresponding server systems and platform software in the monitoring center to achieve unified management of vehicles and yard equipment and distributes data and video streams for staff to monitor In practical application systems there will be multiple servers mainly including management servers recording servers streaming forwarding servers and several application servers each providing several functions
4개 The application software staff can operate and manage the system through the client software obtain corresponding videos and other related information according to user permissions and also issue instructions to the driver through the system for remote command with a strong sense of presence In emergency situations the system can be used to command and guide passengers
5. 시스템 상호 연결: To further connect with other systems through this platform the platform software reserves multiple interfaces to achieve information sharing and linkage with industries such as public security media, and logistics It also has the function of publishing information to public users Other business systems can also be integrated into this system to achieve unified operation and effective linkage of various systems
